Zero Point Quick Change Fixture Compatible Self Centering Vise for Milling

Model Number : TS52-0090

After-sales Service : 12 Months

Production Capacity : 5000pieces/Year

Applicable Machine : 3 4 5 Axis CNC Machining Center

Certification : ISO 9001:2008, ISO 9001:2000, GS, CE

Packaging Details : 35cm*28cm*32cm

Material : Stainless Steel + Aluminum

Transport Package : Carton or Wooden Case

Origin : Guangzhou, Guangdong, China

Supply Ability : 100 Pieces / Month

Customized : Customized

Repeat Positioning Accuracy : 0.01 mm

HS Code : 8466200090

Price : US $800-1,000 / Piece

Trademark : ZPPCNC

Delivery Time : 5-10 word days

Type : 3 Axis, 4 Axis, and 5 Axis Machining Centers

Specification : 176*131*108mm

Brand : Zppcnc

Weight : 8.8kg

Package Gross Weight : 10.000kg

MOQ : 1 Piece

Place of Origin : GuangZhou

Warranty : 12 Months

Brand Name : ZPPCNC

Customization : Available

Package Size : 22.00cm * 22.00cm * 27.00cm

Payment Terms : T/T

Model NO. : TS52-0090

Contact Now

Zero Point Quick Change Fixture Compatible Self Centering Vise for Milling

Product Description

Trademark	ZPPCNC
Place of Origin	Guangzhou, China
Brand	ZPPCNC
Product Model	TS52-0090
Max Clamping Force	18 KN
Repeat Positioning Accuracy	0.01 mm
Application Scenarios	Suitable for 3-axis, 4-axis, and 5-axis machining centers

TS52-0090

Modular Combo Series
1.Free Modular Combination
Featuring standardized reference units, they can be combined side by side on flat surfaces or assembled laterally. It simplifies 3 axis machining modes and enables multiple procedure completion in one setup. Compatible with 3 axis, 4 axis and 5 axis operations, it greatly reduces reliance on multi axis machine tools and extra custom fixture fabrication. Up to 80% of working conditions can be fulfilled merely through modular configuration.
2.Ultra High Repeat Positioning Accuracy
All zero point fixtures deliver repeat positioning accuracy ≤0.005 mm. Minimal deviation occurs during machine tool switching and repeated disassembly assembly. Consistent precision is maintained whether for frequent re clamping or long time machining.
3.Fast Change & Installation for High Efficiency
Support off machine clamping and rapid locking & switching of the whole pallet. It cuts in machine clamping time and eliminates steps such as clamping
4.alignment, tool setting and datum referencing. Clamping time is reduced by over 90%, effectively improving machine tool utilization rate.
Full range Compatibility for Automation Upgrade
52 mm and 96 mm hole spacing is fully compatible with all vises, 3 jaw chucks, dovetail clamps, ER collet holders and custom made fixtures. Manual and pneumatic versions are available. Pneumatic zero point fixtures can connect to robotic arms to build unmanned automated production lines.

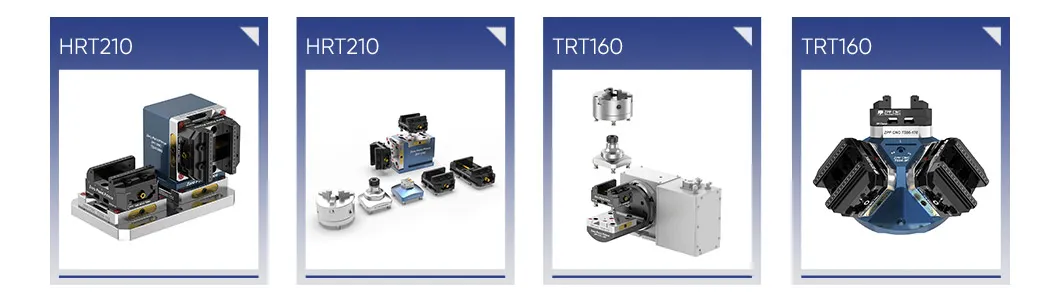

Main products

Company Profile

CO-Grow Machinery Co., Ltd. was founded in 2012 and is located in Xintang Town, Zengcheng District, Guangzhou City, Guangdong Province.
We integrate R&D, production and sales, focusing on automated material libraries, zero-point quick change systems, pneumatic & manual precision vises, high-precision zero-point fixtures and other products. All our products are developed for CNC machining, enabling simpler and modular workpiece clamping with outstanding reliability, precision and stability.
At present, our company owns multiple brands including ZPPCNC, Zero Point Prince, ZPoint One and ZPclamp, alongside a number of patent certificates. Our products are sold worldwide and have gained positive feedback and valuable suggestions from global customers.
Covering an area of nearly 3,000 square meters, our factory is equipped with more than 40 sets of precision equipment such as CNC machining centers, CNC lathes and CNC grinders, and employs over 60 staff members.
We have built full industrial chain capabilities covering R&D, manufacturing, inspection, assembly, testing and sales, realizing mass production of serial products. We specialize in the research and development of quick-change fixtures within the CNC machining sector, empowering numerous CNC processing manufacturers.

Company Advantage

Our Services

Certifications

Exhibition

Packaging & Shipping

FAQ

Q1: How to select the right model?

A: Please inform us of your specifications. We will recommend the optimal model and matching fixture.

Q2: What about product quality?

A: All products undergo strict inspection and testing before delivery.

Q3: Can I enjoy OEM & ODM service?

A: We provide technical proposals and quotations based on your design requirements or samples. Production starts upon your confirmation.
